Computer Systems


Video Terminal Cable

250/260/300 Selection:

Name: Video Terminal Cable
Product Number: 45262-61606
Introduced: 1985
Division: Boeblingen General Systems
Original Price: $136
Catalog Reference: Does not appear
Donated by: Dick Ur, Irwindale California

Description:

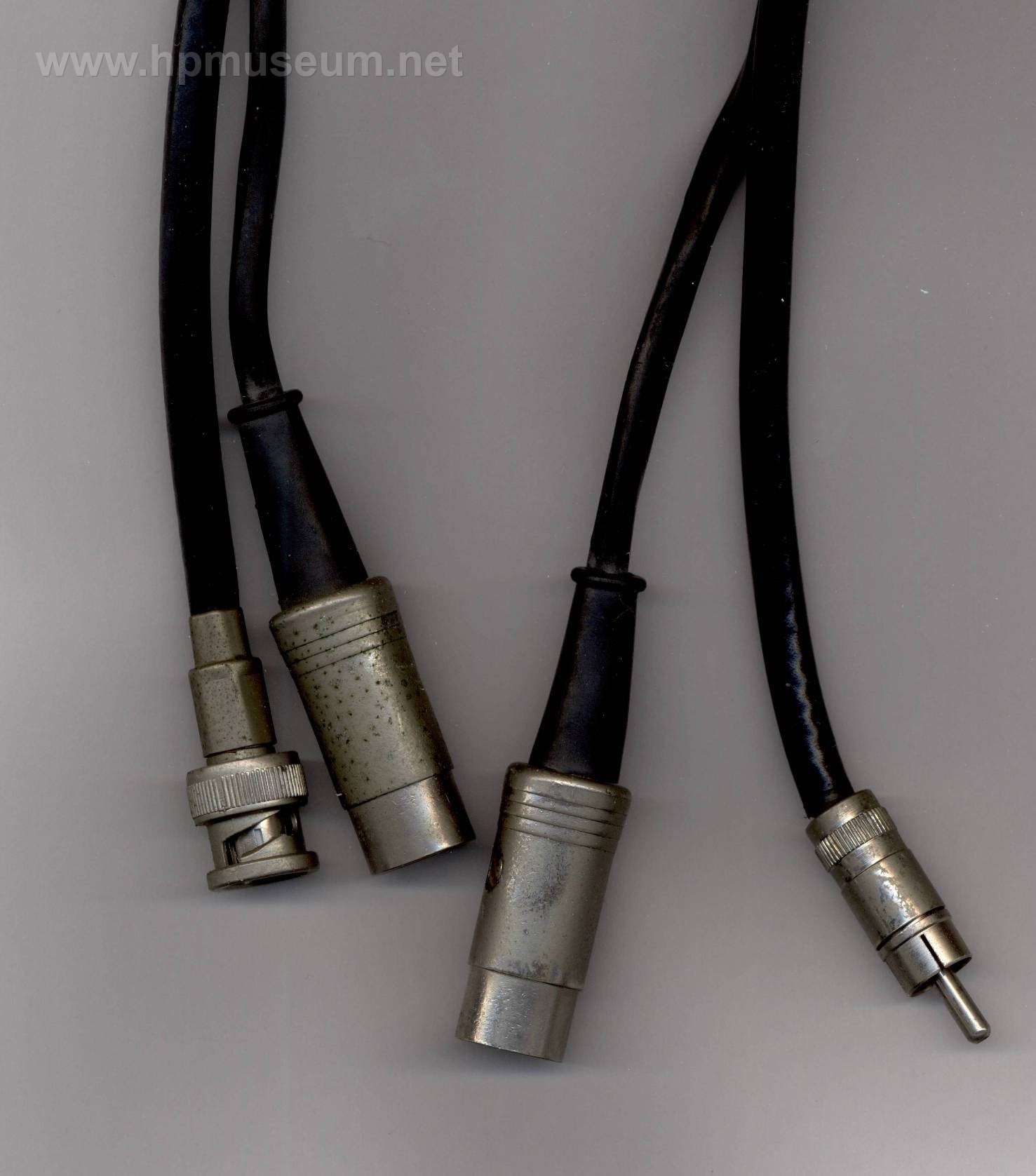

This cable assembly was required to connect a video terminal to the video terminal port on the 260. This assembly consisted of two cables. The video signal was carried on a standard BNC (computer end) to RCA (monitor end) cable. The control signals were carried along a 6-pin circular male-to-male cable. One end connected to the computer and the other end connected to the HP-HIL box (45262-80211) on the back of the monitor. These cables are rare, but easy to make. All six pins go straight through.

HP sold this cable in four lengths: 5 meters (45262-61605) for $136, 10 meters (45262-61610) for $178, 20 meters (45262-61620) for $284 and 30 meters (45262-61630) for $336.
